Manufactured in accordance with the enterprise standard Q/JYZG 001- 2025 Automatic Photovoltaic- Wind Power Generation Equipment. The system converts wind and solar energy into electric power, charges batteries via wind-solar complementary mode, and outputs usable power for loads. Suitable for power supply in remote areas, independent sites and emergency scenarios.
1 Product Features
- The photovoltaic power generation unit adopts automatic sun tracking function to ensure safe operation of PV modules.
- Five blade impeller for optimal rotation efficiency, equipped with gearbox transmission and control system.
- Modular assembly structure for easy transportation, installation and operation.
2 Product Models
| Model | Product Type | Output Power | Resource Requirement |

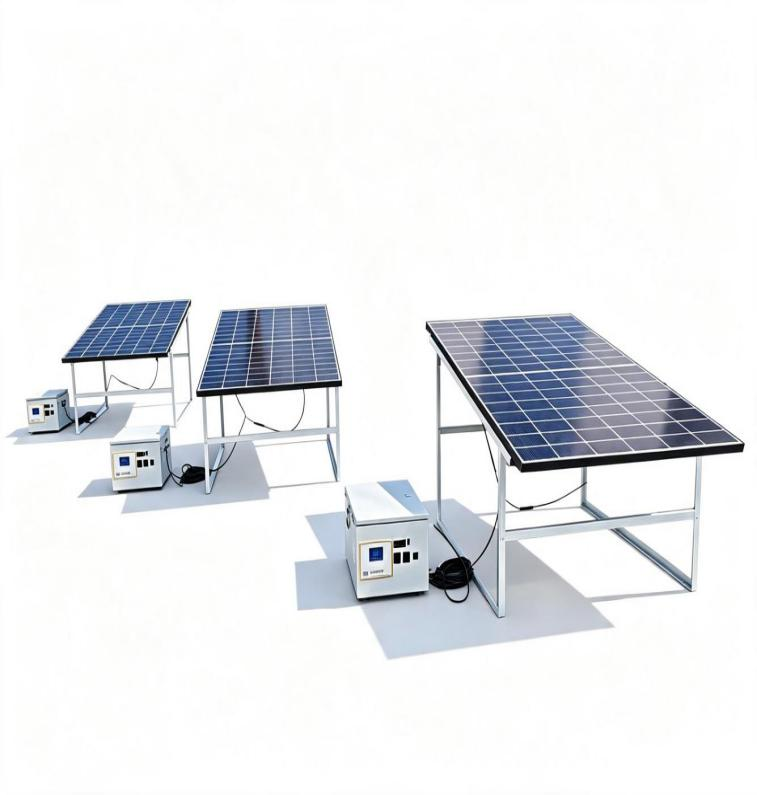

| A-SWH-PS-NKW | Portable Small Wind-Solar Hybrid Power Station | 1-20 kW | Sunlight / Wind ≥8 h per day |
| S-PS-MKW | Automatic Photovoltaic Power Generation | 1-5 kW | Sunlight ≥8 h per day |
5.2.3 Main Technical Parameters
| Parameter | Specification |
| System Operating Voltage | DC 12 V / 24 V / 48 V; usable output power for loads |
| Photovoltaic Module | Operating current 30 A, operating voltage 24 V |
| Inverter Power | 300 W-6000 W, with low-voltage and overload protection |
| Wind- driven Generator | Rotor diameter 1 m, cut-in wind speed ≥3.7 m/s, rated power 100 W |
| Automatic Sun- tracking System | Horizontal rotation 270°, pitch 120°, rotating speed 7 r/s |
| Ambient Temperature | -40 ℃ ~ 85 ℃ |
| Relative Humidity | 45% ~ 95% |
| Safe Service Life | 4 ~ 6 years |
| Overall Dimension | 1080×80×2600 mm |
| Max. Total Weight | 206 kg (with two battery packs) |
